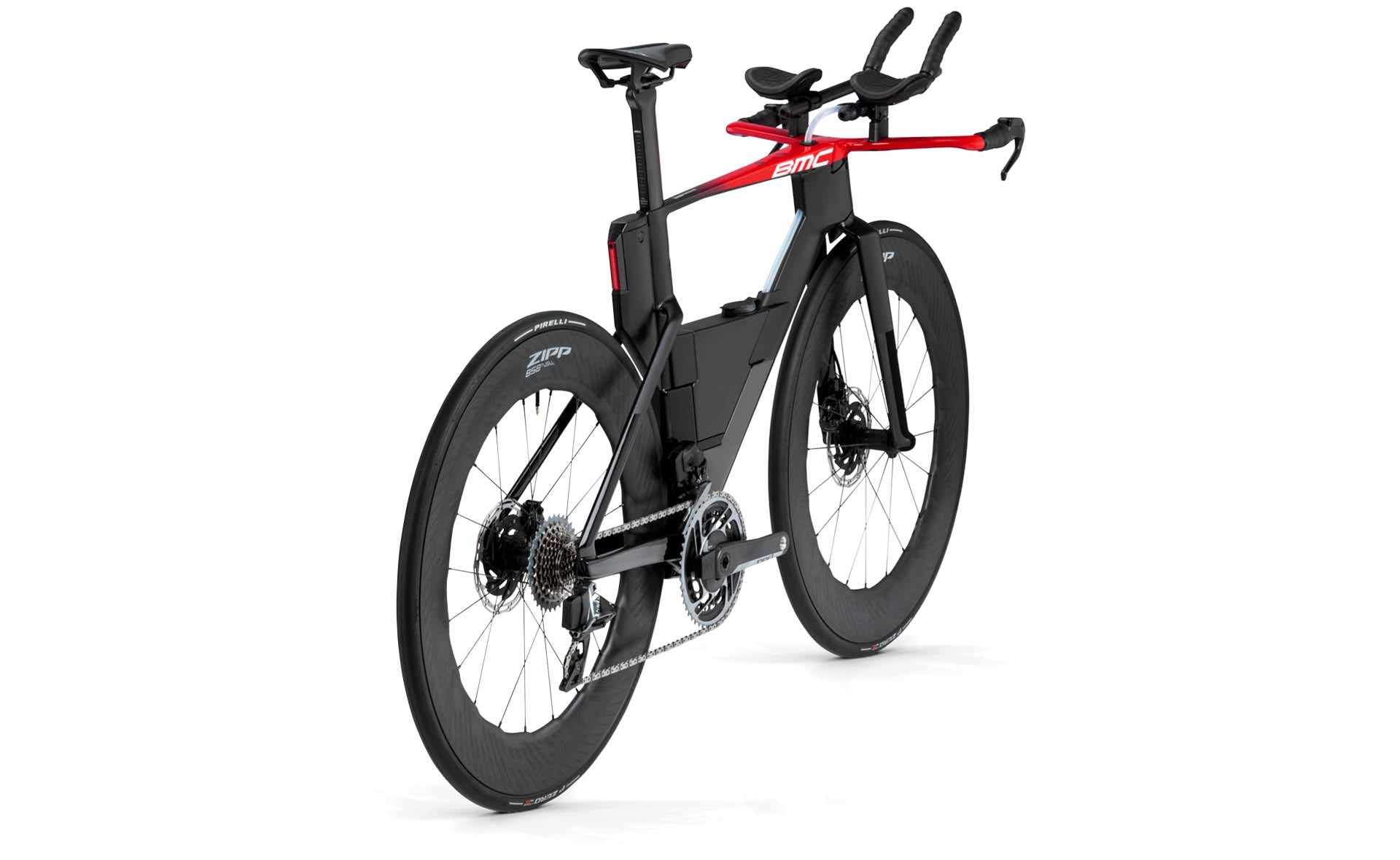

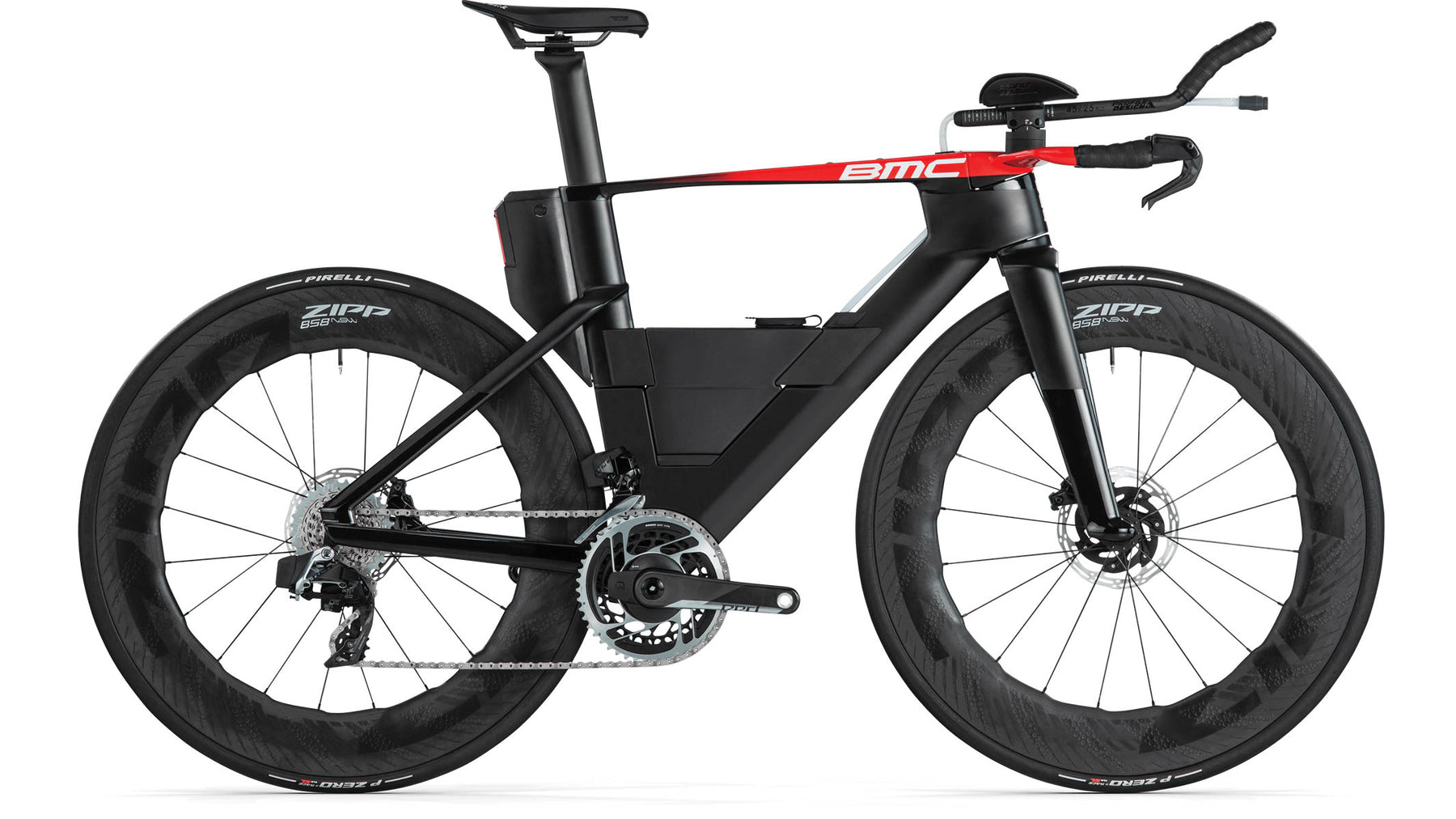

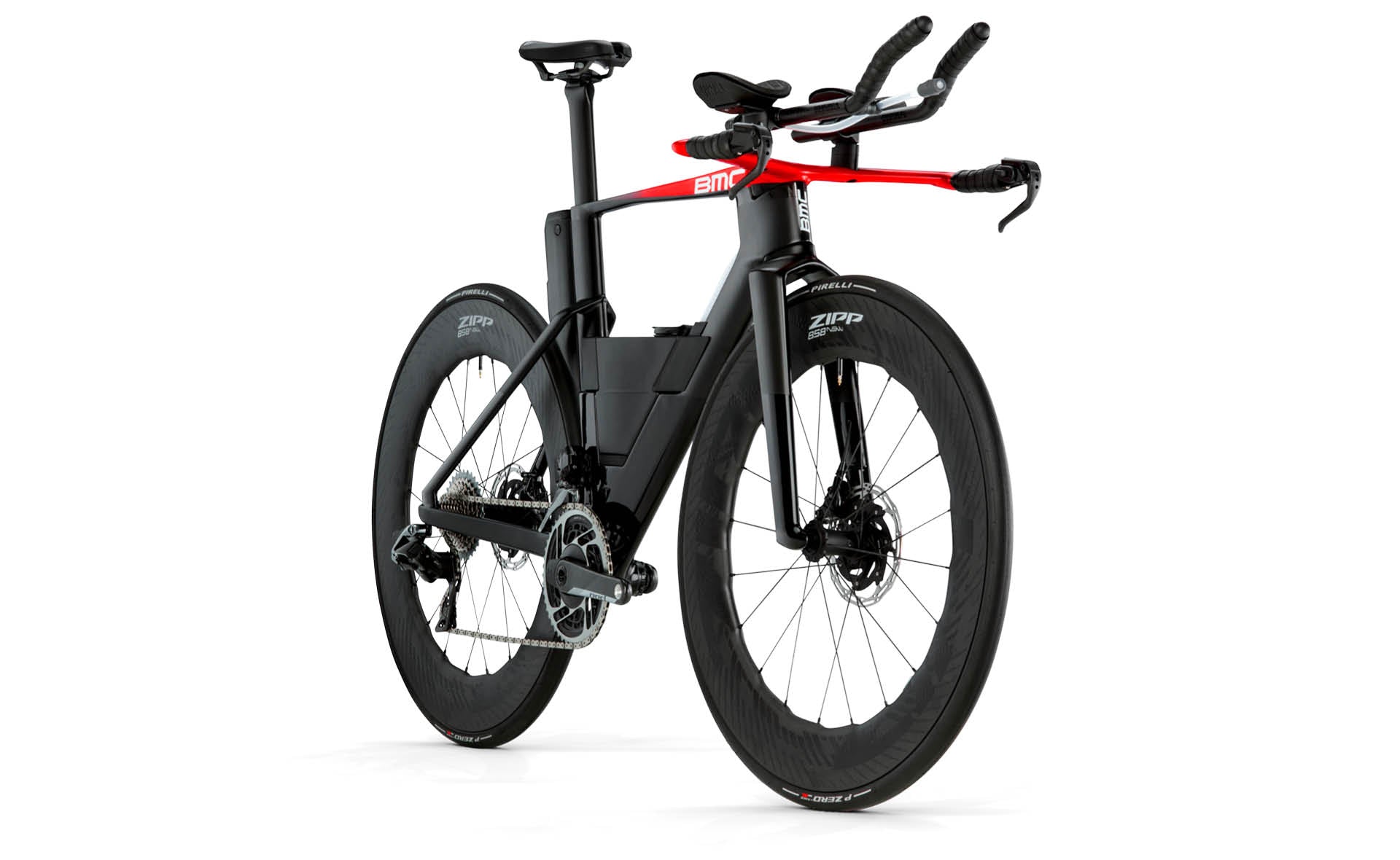

Races don’t happen in a wind tunnel. That’s why we designed the all-new BMC Speedmachine 01 LTD to deliver speed and predictability where you need it most – the real world. By focusing on the rider, bike, and environment as a single system, we’ve made the fastest bike we’ve ever tested – in all conditions. Thanks to precisely designed aerodynamic elements, innovative steering geometry, and endless positioning adaptability, you to stay fast, longer. The Speedmachine 01 LTD is built with ZIPP 858 NSW equipped with Pirelli P-Zero Race 28mm tires, and the SRAM RED eTap AXS Groupset combined with powermeter.
Technology
All Aero
Vital Stability
Adaptability
Everything. Integrated.
Technical Overview
Frameset
Frame:
Speedmachine 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Stealth Dropout Design | Flat Mount Disc | 142x12mm Thru-Axle
Fork:
Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
Cockpit
Handlebar:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 45/25 SLC Aerobar Extensions
Seat
Seatpost:
BMC Speedmachine Seatpost 0 Offset | 0mm, 12.5mm, 25mm Offsets
Saddle:
Fizik Transiro Aeris Long Distance R3
Drivetrain
Crankset:
SRAM RED AXS
Chainrings:
48-35T
Power Meter:
SRAM RED AXS Power Meter
Cassette:
SRAM RED (XG-1290)
Cassette Size:
10-33T
Chain:
SRAM RED
Front Derailleur:
SRAM RED eTap AXS
Rear Derailleur:
SRAM RED AXS
Shifters:
SRAM Blip AXS Wireless 4 units
Gears:
2 x 12
Bottom Bracket:
T47 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM S-900 Aero Disc Brake
Rotors:
SRAM Centerline XR | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
Zipp 858 NSW Tubeless Disc
Hubs (F/R):
Zipp Cognition V2 | Axial Clutch V2™
Tires:
Pirelli P-Zero Race SL TLR | 28mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
Fuel Tank 1200 with straw and bite valve, Rear Storage 260, Intergrated Rear Light
Additional Information
Tire Clearance:
30mm
Weight without Pedals:
8.9 Kg (including FuelTank, Rear Storage and Light)
ASTM Classification:
Level 1
System Weight Limit:
110kg
| Size | S | M | L |
|---|---|---|---|
| Rider Height | <174 | 172-185 | >180 |
| Bar Width | 400 | 400 | 400 |
| BB Drop | 62 | 72 | 72 |
| Crank Length | 165 | 170 | 172.5 |
| Fork Length | 391 | 391 | 391 |
| Front Center | 578 | 606 | 646 |
| Pad Reach Flat Cockpit | 348-466 | 368-486 | 395-548 |
| Pad Stack Flat Cockpit | 558-651 | 588-681 | 628-721 |
| Rear Center | 405 | 405 | 405 |
| Saddle Height Range | 610-740 | 705-835 | 760-881 |
| Seat Angle | 80 | 80 | 82.4 |
| Seat Tube | 460 | 525 | 551 |
| Seatpost Length | 300 | 330 | 360 |
| Seatpost Offset | 0, 12.5, 25 | 0, 12.5, 25 | 0, 12.5, 25 |
| Standover Height | 766 | 806 | 837 |
| Wheelbase | 974 | 1000 | 1040 |
