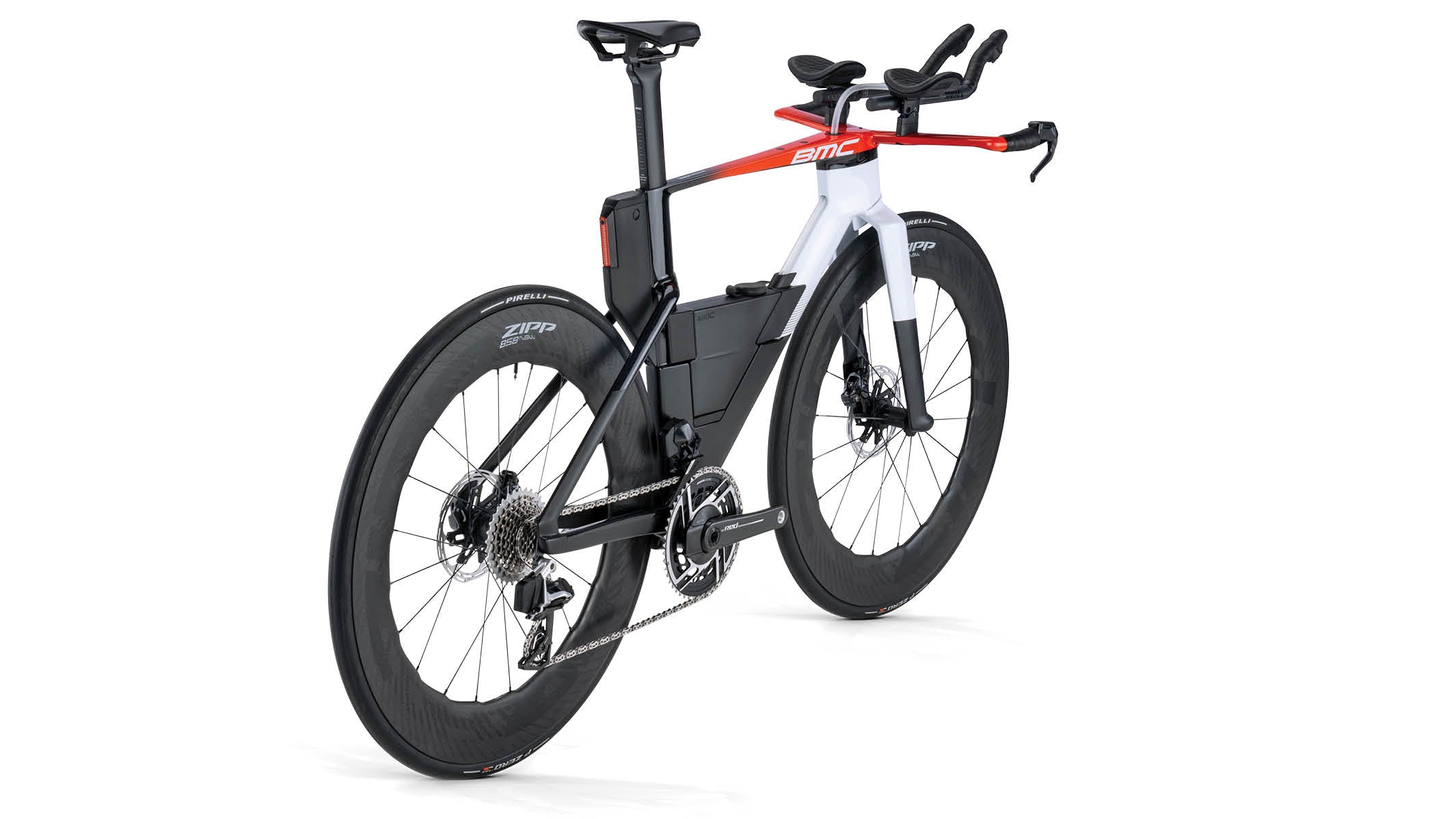

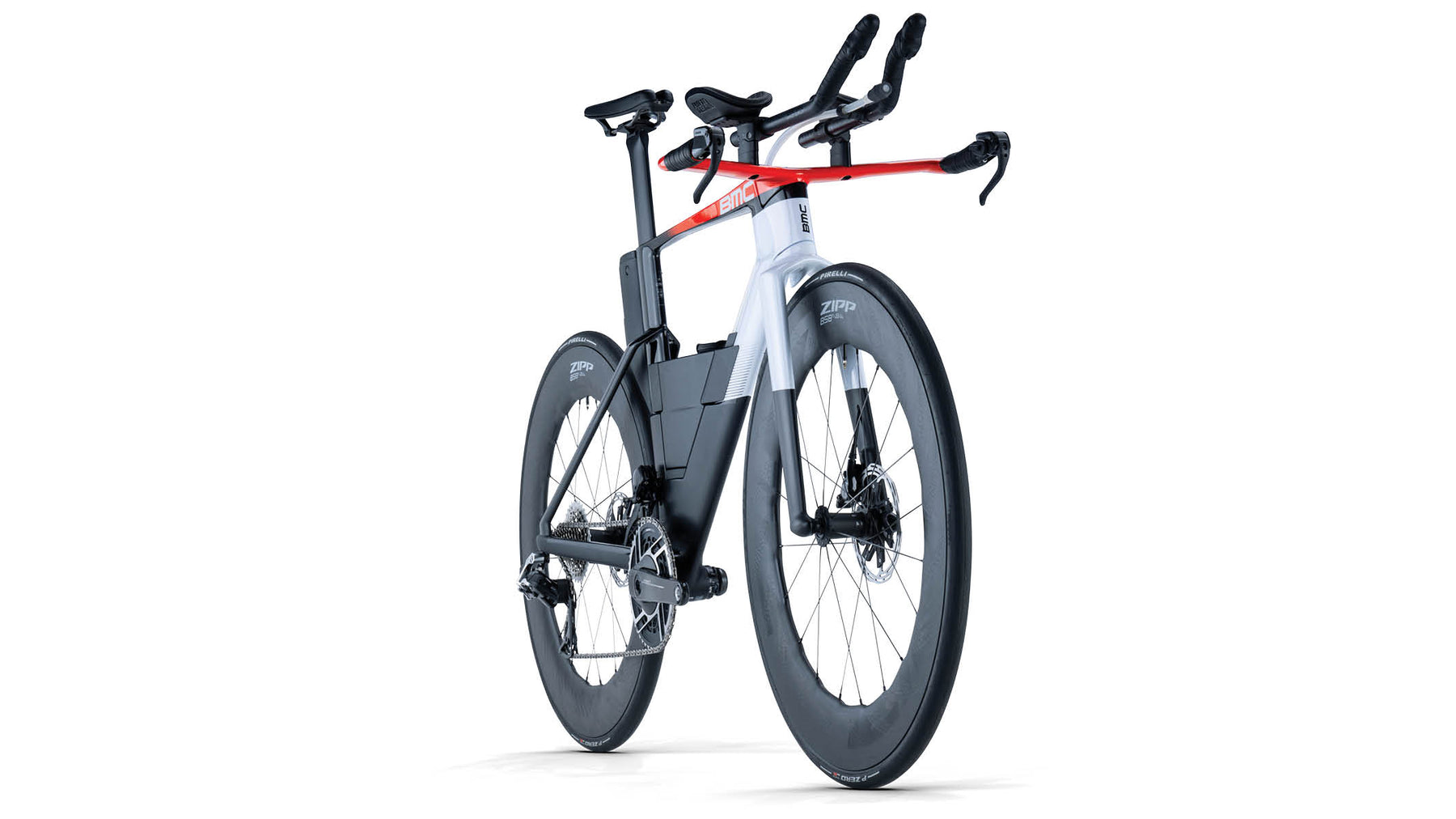

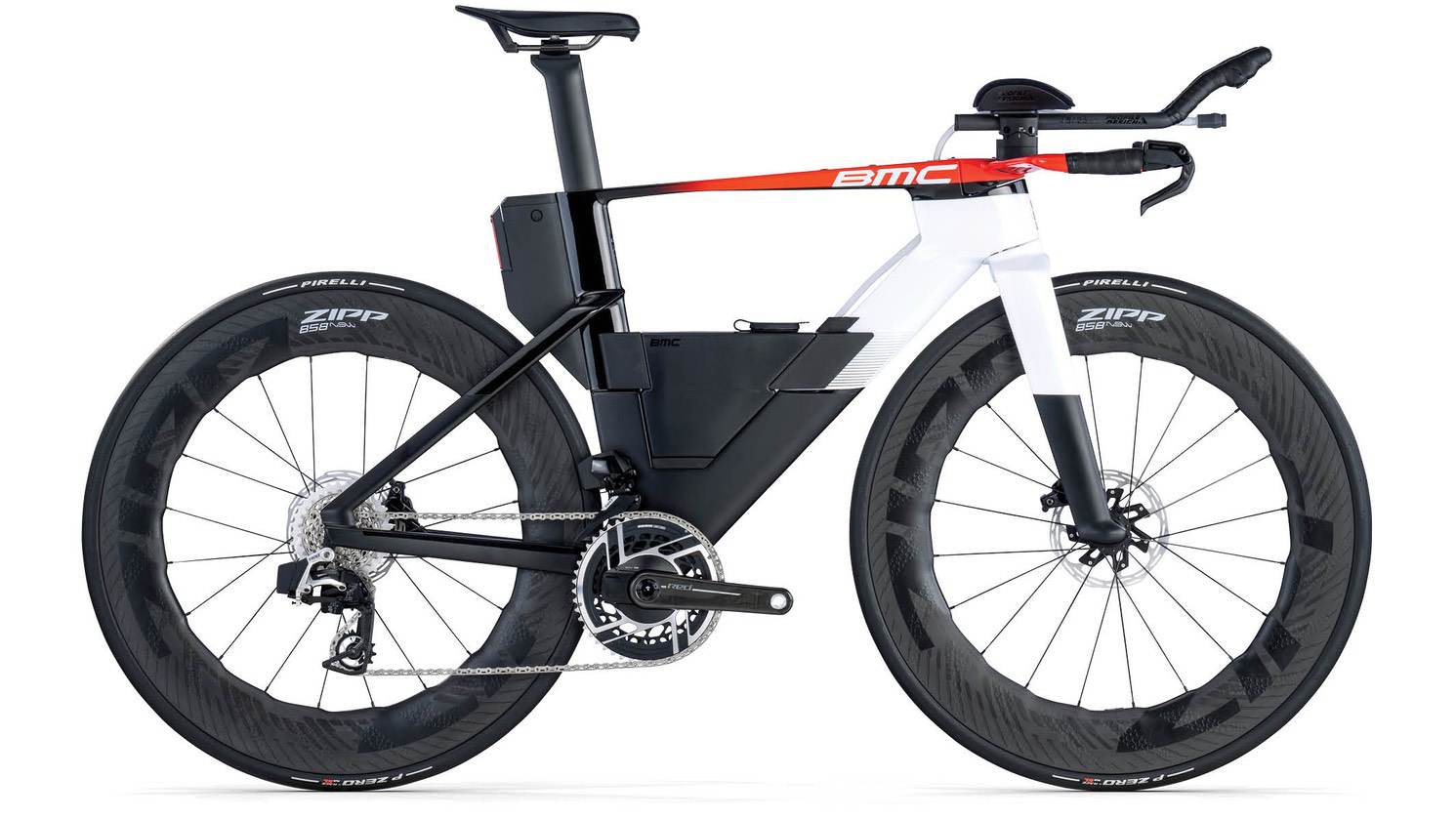

Speedmachine 01 ONE

COOL WHITE / NEON RED

New SRAM RED AXS Drivetrain
ZIPP 858 NSW Wheelset

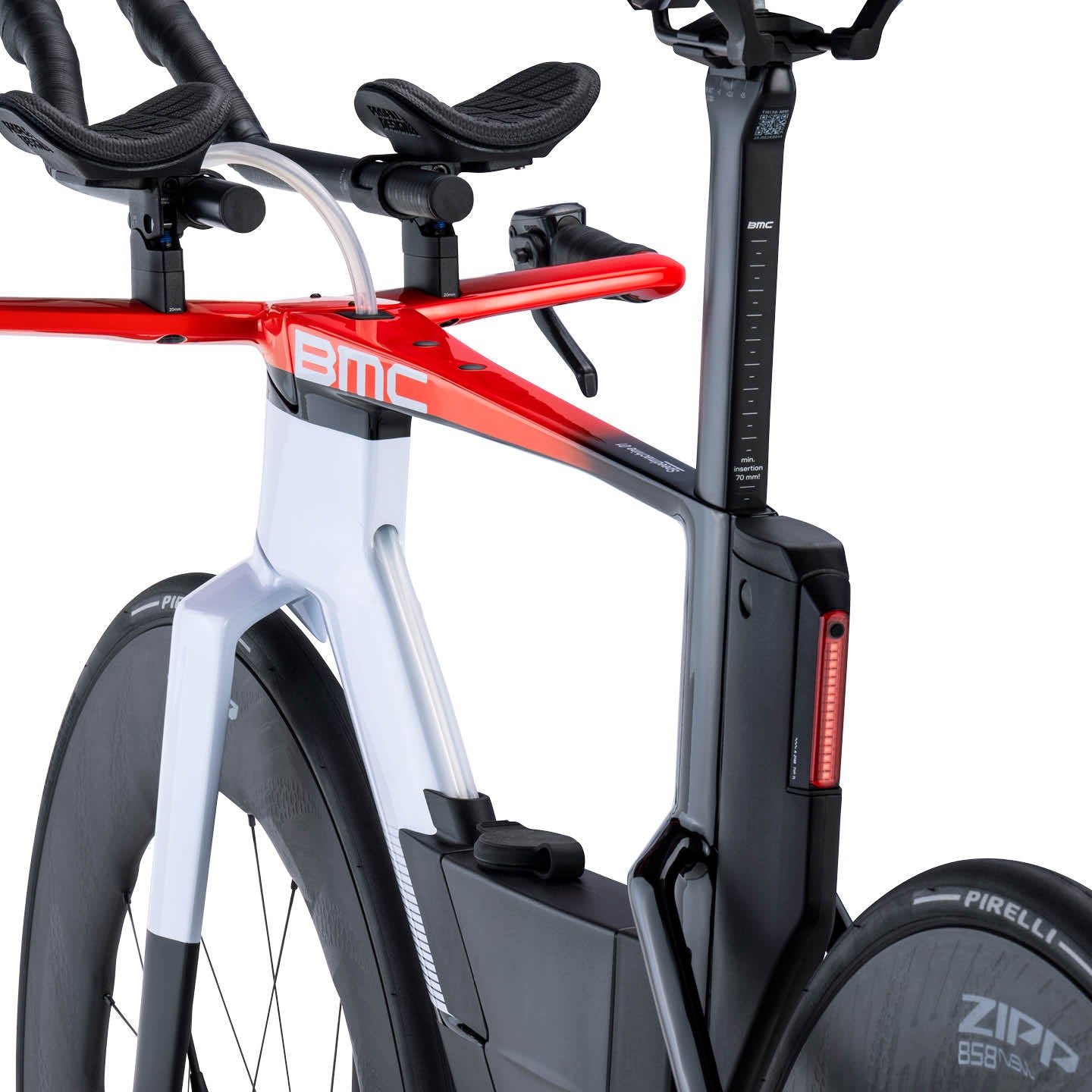

Integrated Fueltank and Rear Storage

Regular priceUSD 16,999.00
USD /
Tax included.

SKU: 30005471
Size

Speedmachine 01 ONE

Parts & Accessories

  • Shipped to your local bike shop
In the realm of racing, the wind tunnel is just one piece of the puzzle. That's why we engineered the all-new BMC Speedmachine 01 ONE to excel in real-world conditions, prioritizing speed and stability. By seamlessly integrating the rider, bike, and environment, we've crafted our fastest bike yet, capable of dominating any terrain. With meticulously designed aerodynamics, innovative steering geometry, and customizable positioning, you can maintain peak performance for longer periods. The Speedmachine 01 ONE features the brand new SRAM RED AXS groupset with a powermeter and ZIPP 858 NSW wheels paired with Pirelli P-Zero Race 28mm tires.

Technology

Technical Overview

Frameset

Frame:
Speedmachine 01 Premium Carbon | ICS Technology Stealth Cable Routing | Integrated Fuel Tank 1200 Hydration System | Integrated Rear Storage 260 | Stealth Dropout Design | Flat Mount Disc | 142x12mm Thru-Axle

Fork:
Speedmachine 01 Premium Carbon | ICS Technology | Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle

Cockpit

Handlebar:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 45/25 SLC Aerobar Extensions

Seat

Seatpost:
BMC Speedmachine Seatpost 0 Offset | 0mm, 12.5mm, 25mm Offsets

Saddle:
Fizik Transiro Aeris Long Distance R3

Drivetrain

Crankset:
SRAM RED AXS

Chainrings:
48-35T

Power Meter:
SRAM RED AXS Power Meter

Cassette:
SRAM RED (XG-1290)

Cassette Size:
10-33T

Chain:
SRAM RED

Front Derailleur:
SRAM RED AXS

Rear Derailleur:
SRAM RED AXS

Shifters:
SRAM Blip AXS Wireless 4 units

Gears:
2 x 12

Bottom Bracket:
T47 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM RED AXS (ED-RED-E1)

Rotors:
SRAM Paceline X | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
Zipp 858 NSW Tubeless Disc

Hubs (F/R):
Zipp Cognition V2 | Axial Clutch V2™

Tires:
Pirelli P-Zero Race SL TLR | 28mm

Tubeless Information:
Tubeless Only Rims | Tubeless Tires

Accessories

Fuel Tank 1200, straw and bite valve | Rear Storage 260 | Integrated Rear Light

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
8.9 Kg (including FuelTank, Rear Storage and Light)

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size S M L
Rider Height <174 172-185 >180
Bar Width 400 400 400
BB Drop 62 72 72
Crank Length 165 170 172.5
Fork Length 391 391 391
Front Center 578 606 646
Pad Reach Flat Cockpit 348-466 368-486 395-548
Pad Stack Flat Cockpit 558-651 588-681 628-721
Rear Center 405 405 405
Saddle Height Range 610-740 705-835 760-881
Seat Angle 80 80 82.4
Seat Tube 460 525 551
Seatpost Length 300 330 360
Seatpost Offset 0, 12.5, 25 0, 12.5, 25 0, 12.5, 25
Standover Height 766 806 837
Wheelbase 974 1000 1040
