Name: Roadmachine 01 AMP ONE
Brand: BMC
SKU: 30002724
Price: 8999.0 USD
Availability: OutOfStock

Roadmachine 01 AMP ONE | BMC | bikes | E-Bike, E-Bike | Road

Green / Red

TQ-HPR50 Drive Unit
SHIMANO Ultegra Di2
Pirelli Cinturato Velo TLR, 32 mm

USD 8,999.00

SKU: 30002724

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network

[{"id":40926211276879,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30002723","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Roadmachine 01 AMP ONE - 47","public_title":"47","options":["47"],"price":899900,"weight":17000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027887730","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926211309647,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30002724","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP ONE - 51","public_title":"51","options":["51"],"price":899900,"weight":17000,"compare_at_price":null,"inventory_quantity":10,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027887822","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926211342415,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30002725","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP ONE - 54","public_title":"54","options":["54"],"price":899900,"weight":17000,"compare_at_price":null,"inventory_quantity":43,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027887815","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926211407951,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30002726","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP ONE - 56","public_title":"56","options":["56"],"price":899900,"weight":17000,"compare_at_price":null,"inventory_quantity":41,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027887808","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926211440719,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30002727","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP ONE - 58","public_title":"58","options":["58"],"price":899900,"weight":17000,"compare_at_price":null,"inventory_quantity":20,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027887792","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40926211473487,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30002728","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Roadmachine 01 AMP ONE - 61","public_title":"61","options":["61"],"price":899900,"weight":17000,"compare_at_price":null,"inventory_quantity":6,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630027887785","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

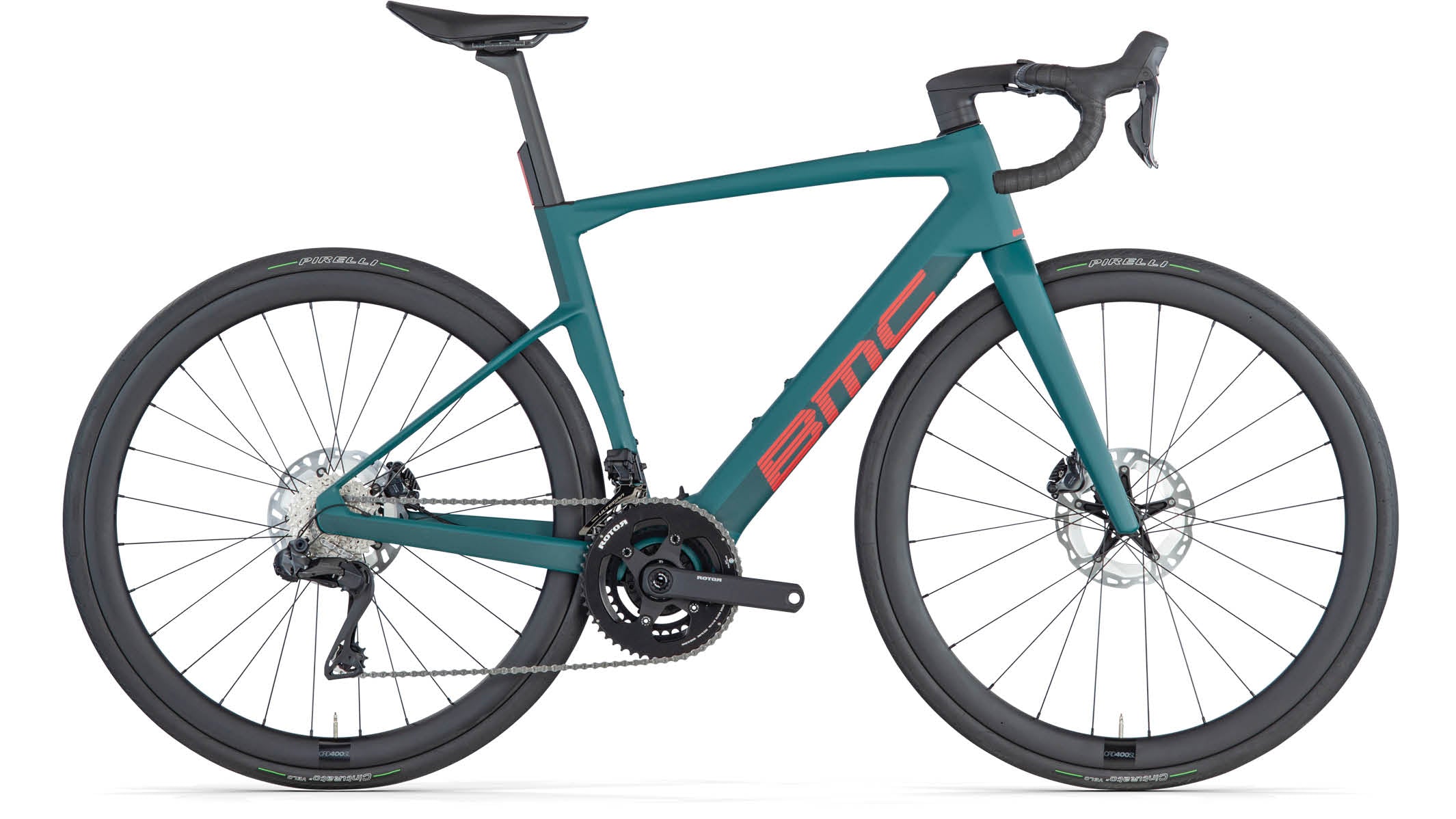

Everything that other e-road bikes aren’t: The Roadmachine 01 AMP ONE is uniquely engineered for high mileage with hidden power. Innovative and researched, we’re continuing the Roadmachine’s lineage by allying a technically refined design with the exceptionally light and quiet TQ-HPR50 drive unit. Seamlessly integrated into the Premium Carbon frame, everything adds up to make this a favorite for endurance: note the Shimano Ultegra Di2 groupset, ICS2 stem and CRD-400 SL wheels. In short, it’s an elevated BMC design, amplified to meet the timeless needs of the Roadmachine rider.

Technology

Hidden Power

Roadmachine 01 AMP extends your journey thanks to the revolutionary TQ-HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling.

Fast and Forgiving

The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance.

Safety First

Light up your ride with integrated safety features. A custom BMC backlight is connected directly to the battery for long life and the computer mount offers easy installation of a front light.

Integrated Cockpit System (ICS2)

ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.

Technical Overview

Frameset

Fork:
Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12 x 100mm Thru-Axle

E-System

Drive Unit:
TQ-HPR50 Drive Unit

Battery Pack:
TQ Battery | 360 Wh

Display:
TQ Display | 2" O-LED | Bluetooth / ANT+

Charger:
TQ-HPR50 4A Charger

Cockpit

Stem:
BMC ICS2 | Integrated Cockpit System Technology

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible

Saddle:
Fizik Argo Tempo R1 | 150mm

Drivetrain

Crankset:
Rotor eVegast

Chainrings:
50-34T

Cassette:
SHIMANO Ultegra

Cassette Size:
11-30T

Chain:
SHIMANO CN-M8100

Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)

Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)

Shifters:
SHIMANO Ultegra Di2 (ST-R8170)

Gears:
2 x 12

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)

Rotors:
SHIMANO RT-MT800 / RT-EM810 | Centerlock

Rotor Size (F/R):
180 / 180mm

Wheels

Rims:
CRD-400 SL Carbon | Tubeless Ready | 40mm

Hubs (F/R):
CRD-400 SL

Tires:
Pirelli Cinturato Velo TLR | 32mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

In the Box:
Integrated Rear Light

Additional Information

Tire Clearance:
38mm

Weight without Pedals:
12.5 Kg

ASTM Classification:
Level 2

System Weight Limit:
120kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	47	51	54	56	58	61
Rider Height	<162	162-174	172-180	178-186	184-192	>190
Reach	370	379	383	388	393	398
Stack	525	550	570	595	620	645
Bar Drop	125	125	125	125	125	125
Bar Reach	70	70	70	70	70	70
Bar Width	400	420	420	420	420	440
BB Drop	75	75	75	75	75	75
Crank Length	170	170	170	170	170	170
Fork Length	380	380	380	380	380	380
Fork Rake	50	50	45	45	45	45
Front Center	579	596	594	607	620	633
Head Tube	112	138	154	181	207	233
Head Tube Angle	71.4	71.4	72.2	72.2	72.2	72.2
Rear Center	420	420	420	420	420	420
Seat Angle	74.2	74.2	74.2	74.2	74.2	74.2
Seat Tube	420	460	500	525	545	575
Seatpost Length	230	280	280	280	280	330
Seatpost Offset	15	15	15	15	15	15
Standover Height	728	755	786	810	829	850
Stem Angle	-12.5	-12.5	-12.5	-12.5	-12.5	-12.5
Stem Length	90	90	100	110	110	110
Top Tube	519	535	544	556	568	581
Trail	63	63	63	63	63	63
Wheelbase	987	1005	1002	1015	1028	1041
