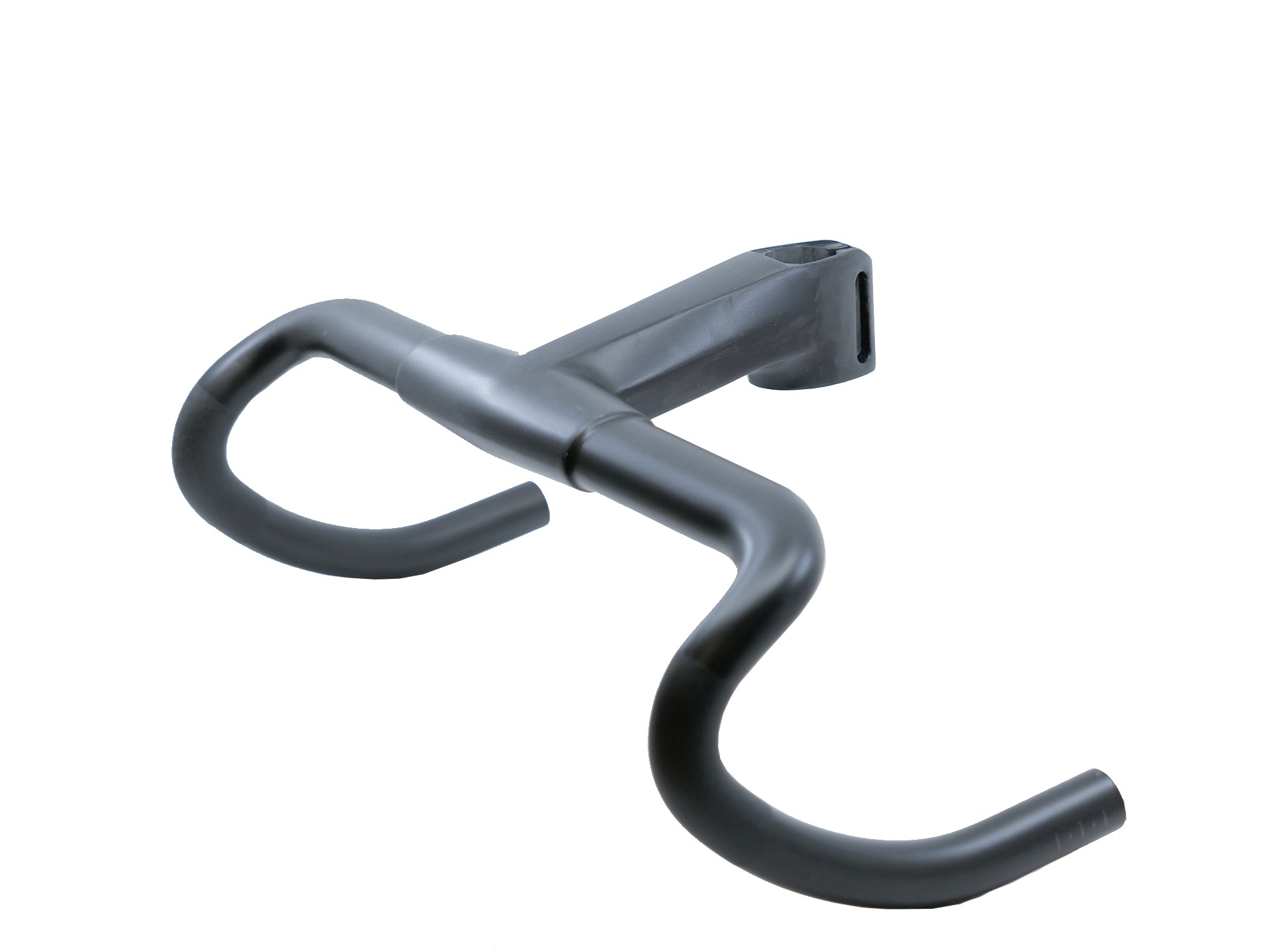

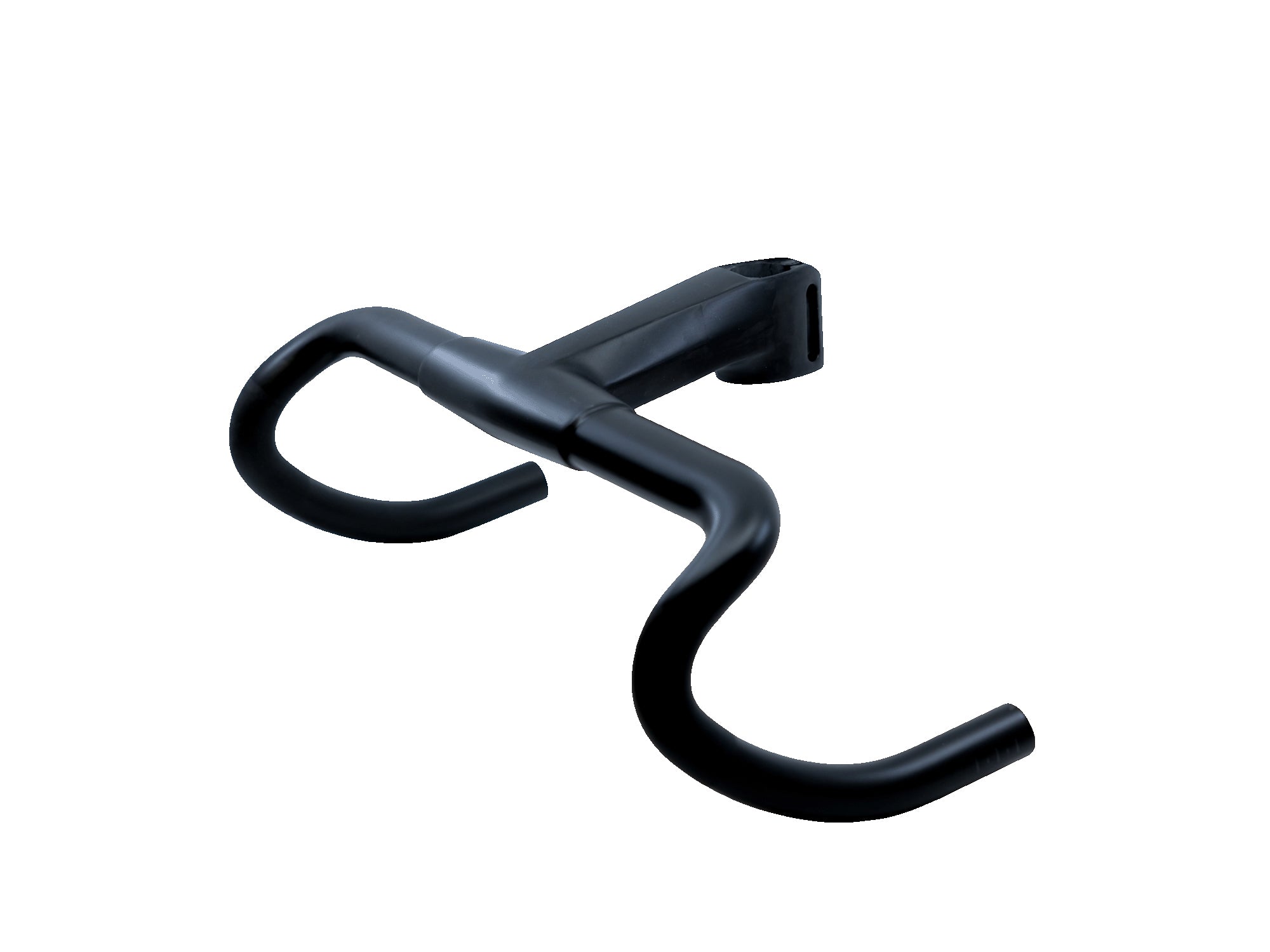

ICS Carbon is BMC’s first iteration of one-piece carbon fiber cockpits, created with incredibly low weight, 6.0° flare, high stiffness, stealth cable routing, and integrated device mounts for the most popular modern devices.
BMC’s Type 2 Integrated Cockpit System improves the alignment of spacers, top cones, and the stem for optimal assembly and a clean, seamless look.
All cables run fully inside the stem and handlebar, preserving a secure top-section grip thanks to the oval ergonomic profile.
The drops use a modern bend with a 127 mm drop and 67 mm reach. Available in four stem lengths, it’s the perfect upgrade for your ride.Compatible with our optional computer mount compatible with Garmin and Wahoo devices.
Technical Overview
Features
Compatible with:
Check ICS Compatibility file
Included in the Box:
1x cockpit; 1x expander bolt; 1x integrated topcap; 1x open topcap; 1x nut; 1x plate; 3x clamping bolts; 1x rubber cover
Additional Information
General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)
| Size | 90 / 400mm | 100 / 420mm | 110 / 420mm | 120 / 420mm |
|---|---|---|---|---|
| Bar Drop | 140 | 140 | 140 | 140 |
| Bar Reach | 70 | 70 | 70 | 70 |
| Bar Width | 384 / 400 | 403 / 420 | 403 / 420 | 403 / 420 |
| Stem Angle | -13° | -13° | -13° | -13° |
| Stem Length | 94 | 104 | 114 | 124 |
