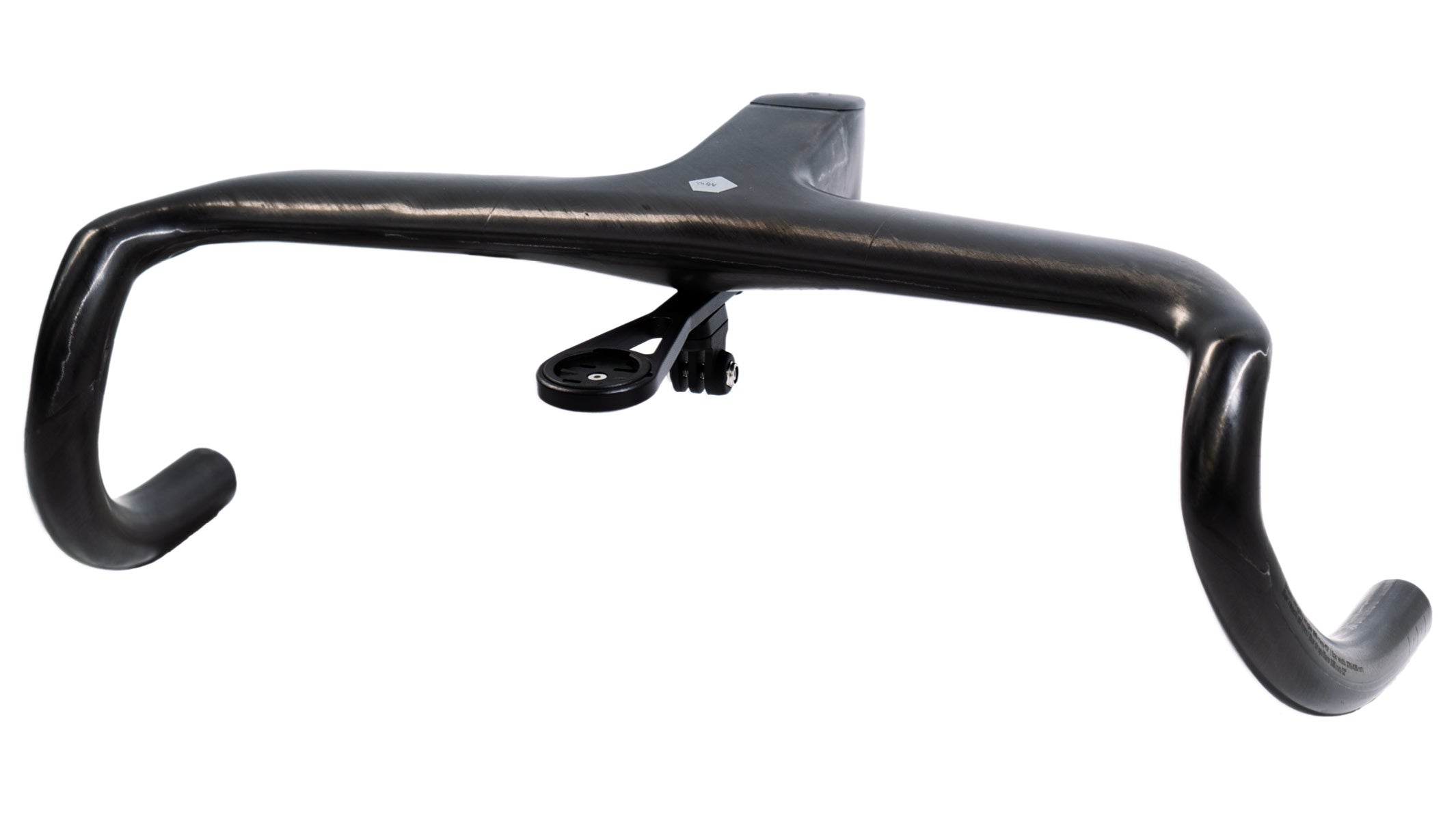

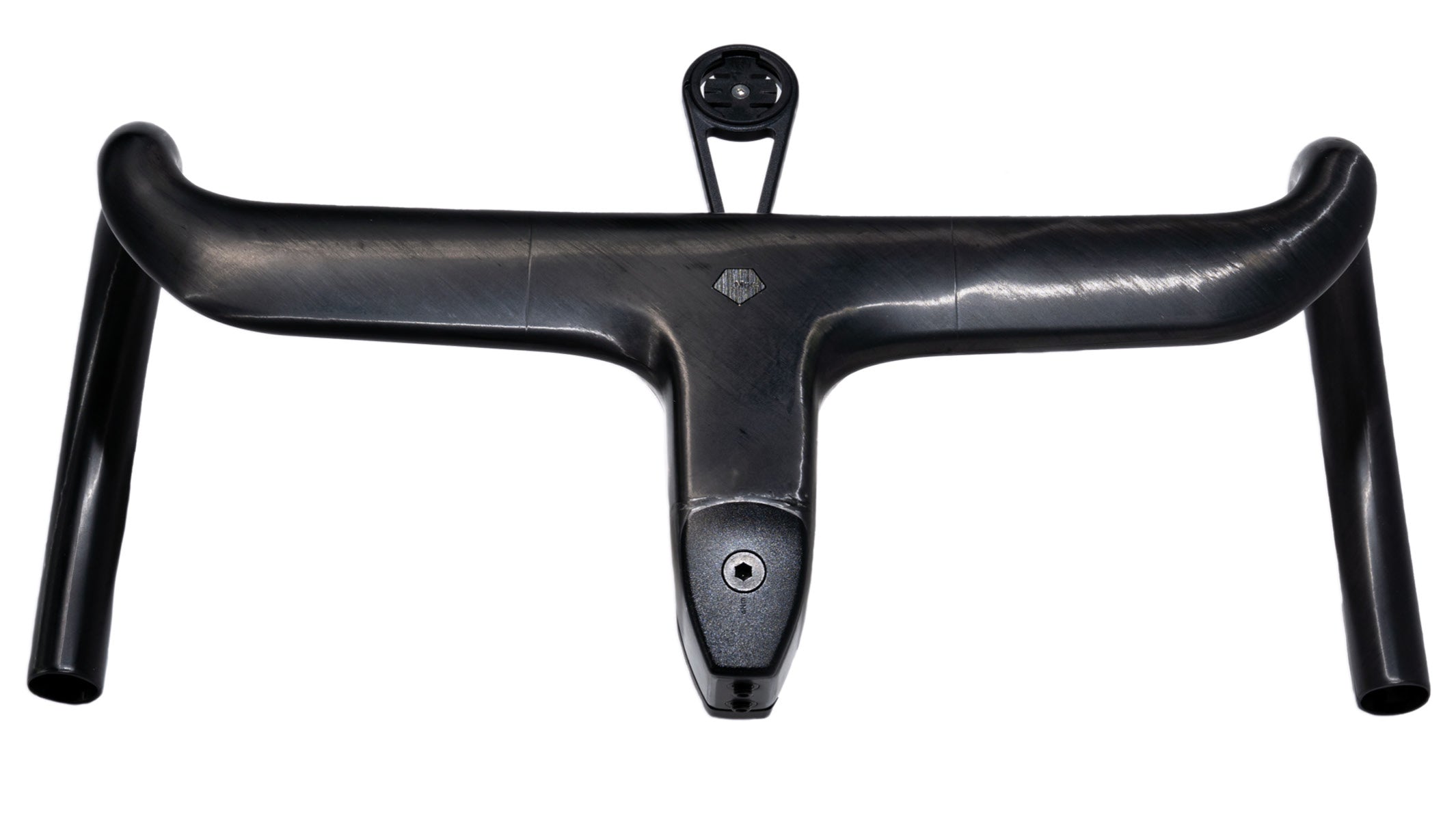

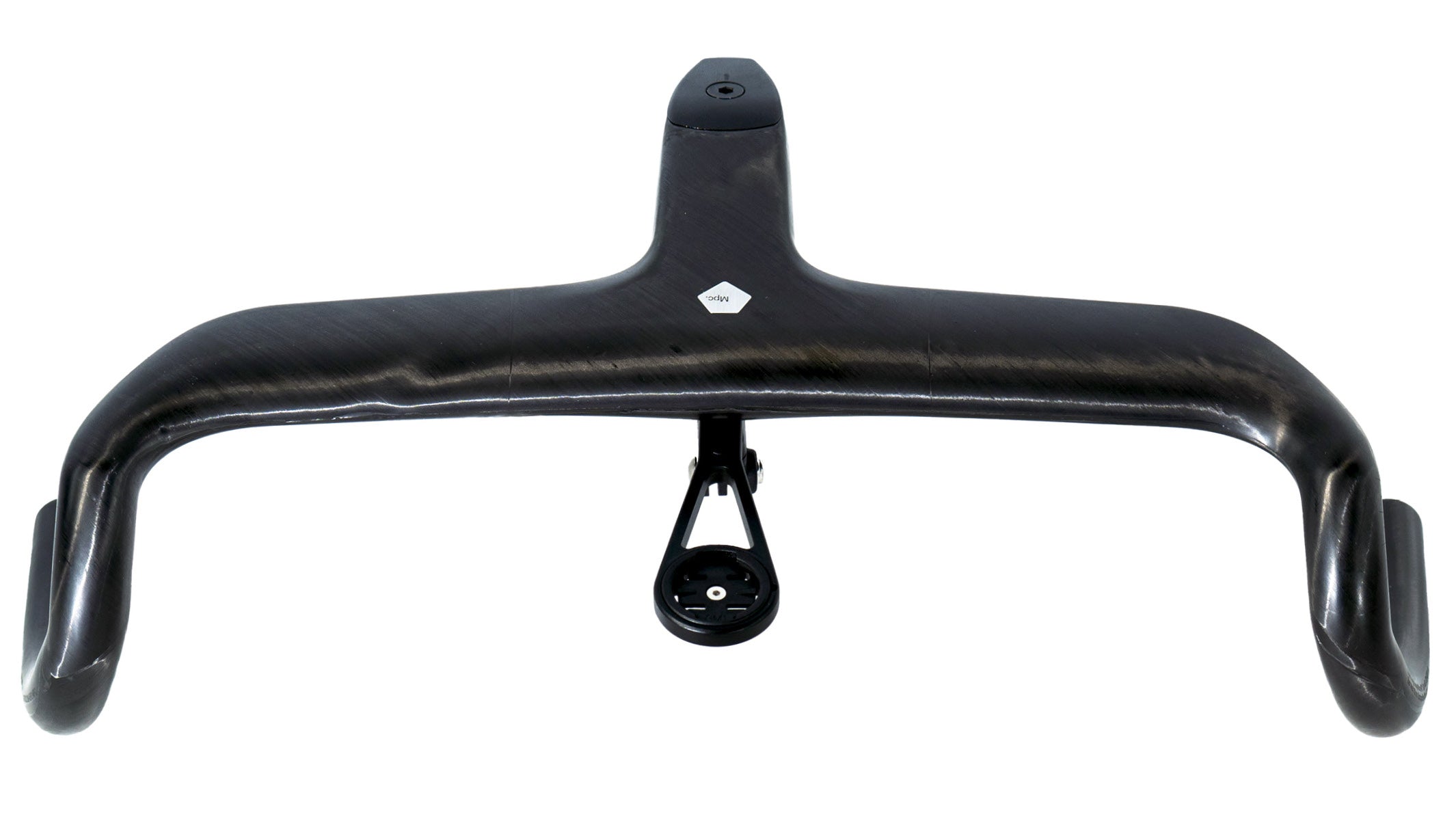

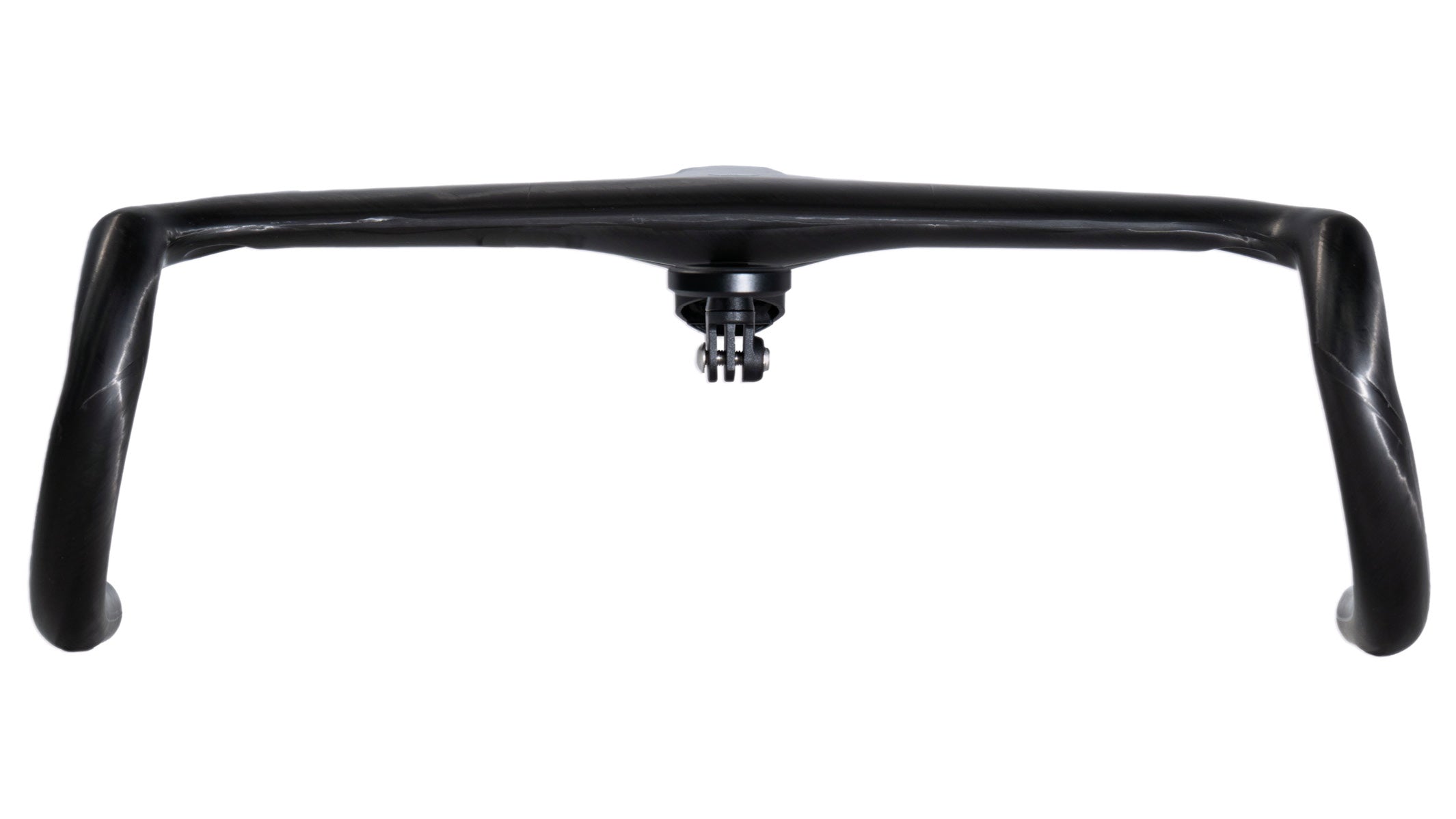

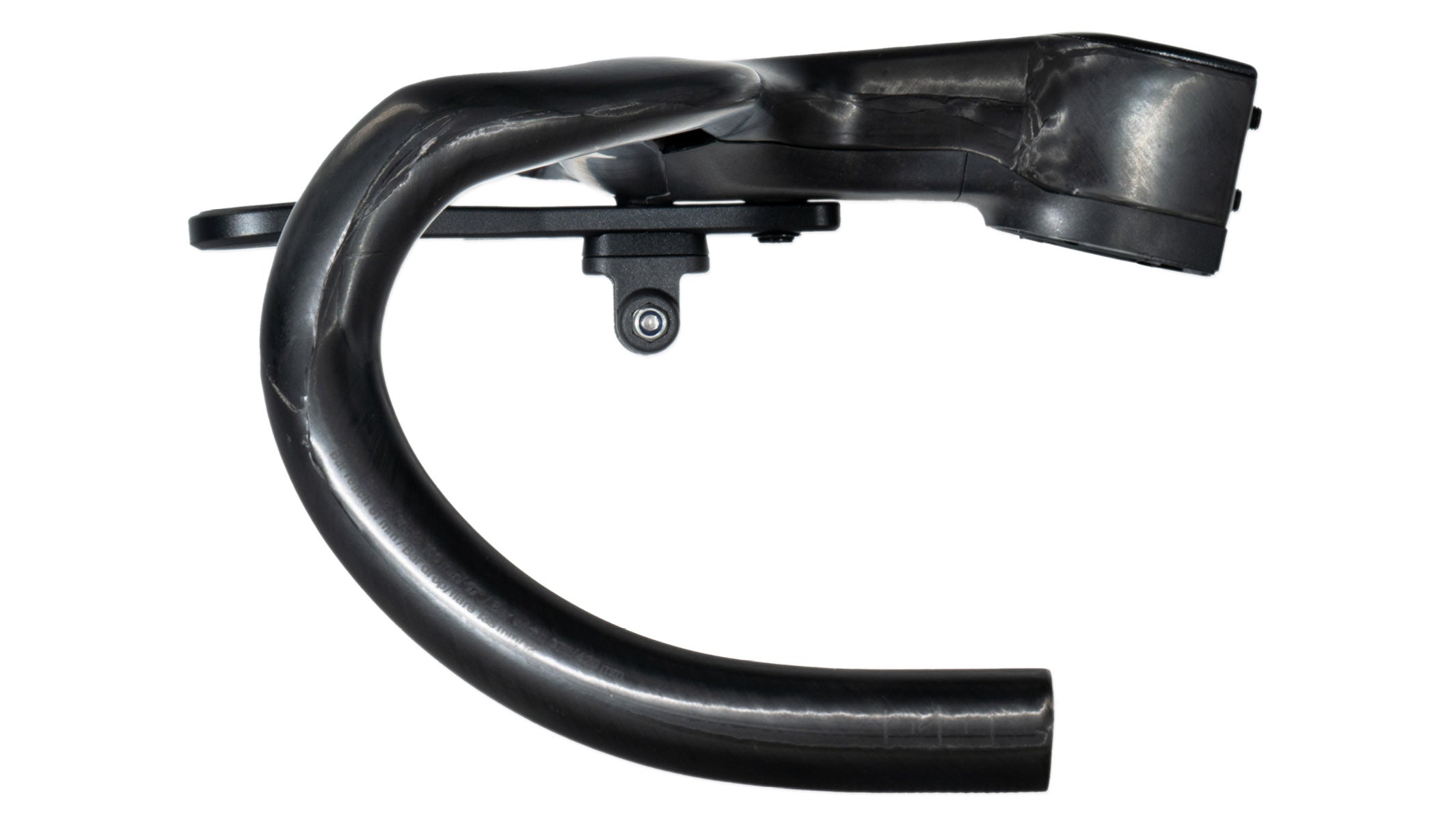

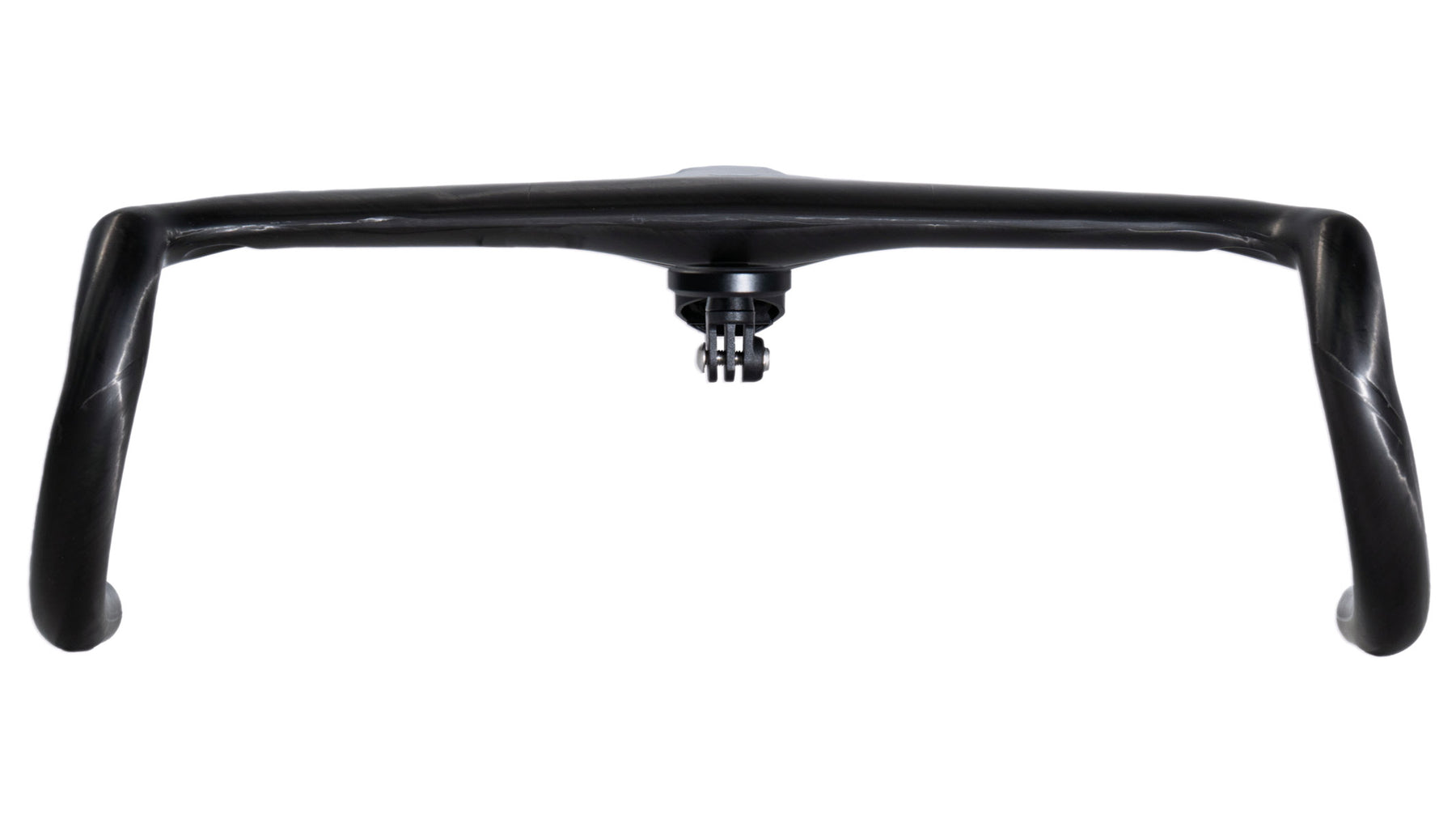

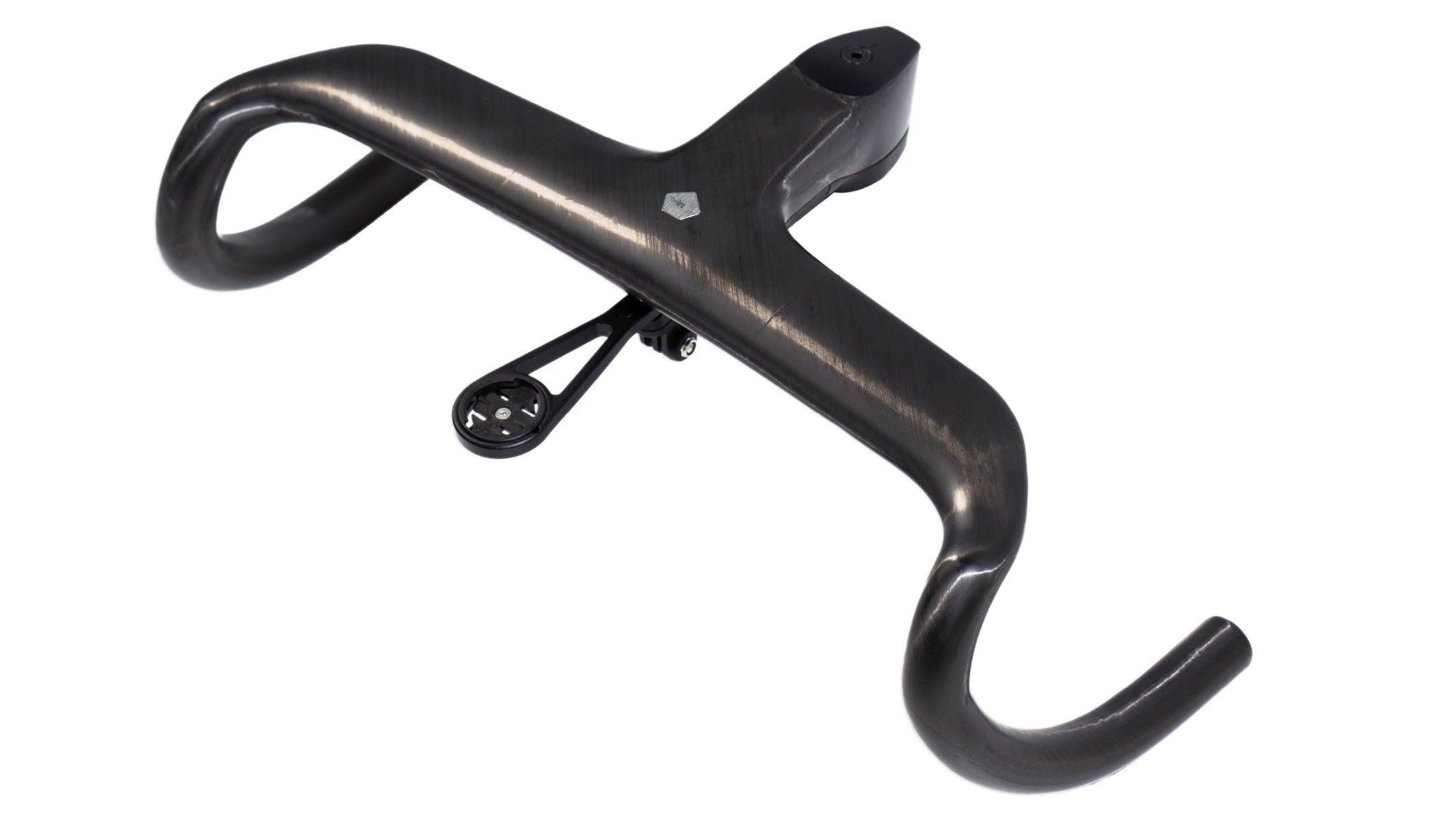

Aero Efficiency, Race-Proven Control. The ICS Carbon Aero Mpc. cockpit is the pinnacle of aerodynamic integration and racing ergonomics. Continuing to design and develop our line of Masterpiece products, we are now completing the Teammachine R Mpc. frameset with an aero optimized cockpit. Designed with a “by racers, for racers” approach, it delivers a no-compromise blend of stiffness, weight, and user-focused functionality. Engineered with AeroSynthesys philosophy, this cockpit acts as the leading edge of your system - cutting airflow before it reaches the rider for real aero gains. At just +80g over traditional designs, it delivers twice the stiffness, thanks to an optimized layup of carbon composite and our new steerer clamping system that improves surface contact to the steerer tube for maximum control and power transfer. The compact width of 370mm (hoods) and 420mm (drops), with 12.5° flare, ensure optimal ergonomics and positioning. The drops are designed inline with today’s offset brake levers (SRAM Red). BMC’s progressive drop shape ensures confident handling and smooth hand transitions from the different grip positions on the bar. Multiple stem lengths are available: from 90 to 120mm in 10mm increments - ready to dial in your race fit. External cable routing is streamlined and simple, with clean under-bar covers. Delivered with a computer mount compatible with Garmin and Wahoo devices, plus a GoPro mount interface that will let you bolt additional accessories of your choice (light, camera, etc.).
Technical Overview
Size | 90 / 420mm | 100 / 420mm | 110 / 420mm | 120 / 420mm |
---|---|---|---|---|
Bar Drop | 135 | 135 | 135 | 135 |
Bar Reach | 81 | 81 | 81 | 81 |
Bar Width | 370 / 420 | 370 / 420 | 370 / 420 | 370 / 420 |
Stem Angle | -17 | -17 | -17 | -17 |
Stem Length | 86 | 96 | 106 | 116 |
