Lightweight Carbon VAR0

Ready for a custom build: the ultimate rider-first aero platform built around position, stability and speed you can hold.

USD 6,499.00

SKU: 30008062

Size —

Check for availability within our Retailer Network

[{"id":56310578807170,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30008062","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedmachine 01 Module - S","public_title":"S","options":["S"],"price":649900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534571","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310578839938,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30008063","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedmachine 01 Module - M","public_title":"M","options":["M"],"price":649900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534663","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":56310578872706,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30008064","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Speedmachine 01 Module - L","public_title":"L","options":["L"],"price":649900,"weight":9,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"7630906534656","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

You’re only fast when you can stay aero. That principle sits at the core of the Speedmachine 01, our fastest triathlon frame engineered for sustained speed. Developed together with Red Bull Advanced Technologies, this race bike frame builds aerodynamics around adjustability. This Module comes with frame, fork, storage, seatpost, plus BMC Speedmachine Flat Cockpit, with Profile Design Aeria Ultimate with Ergo+ Armrests and SLC Aerobar Extensions, leaving the rest of the build up to your desire. The uncompromising 01 Premium Carbon layup provides the stiffness you need to push hard, paired with calm, predictable handling, allowing triathletes to stay low in the aerobars for longer. The raw carbon finish with easy to remove decals allows easy custom paint or leave it raw for pure race focus.

Technology

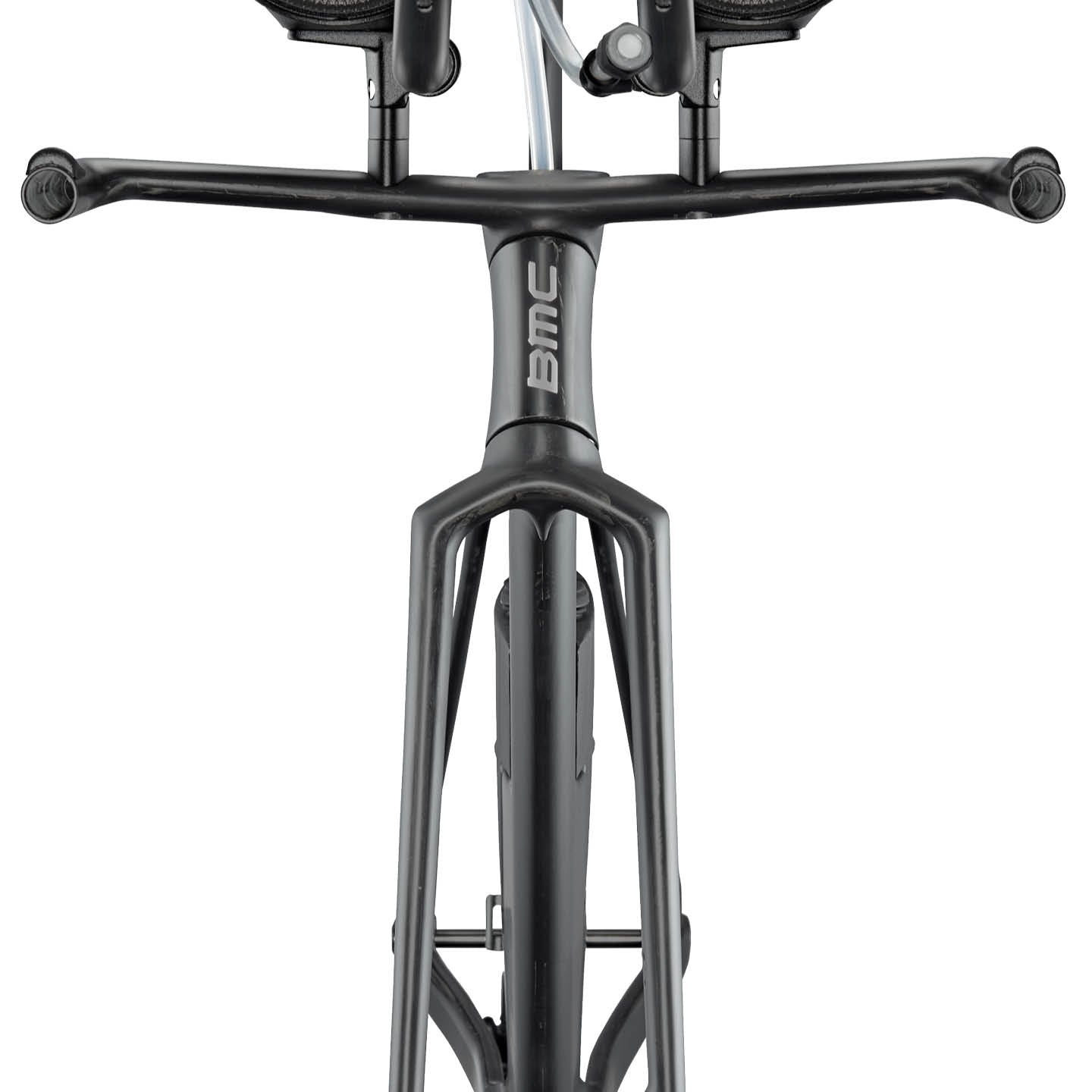

All Aero

We engineered the Speedmachine around full system aerodynamics, optimized for both bike and rider. And we did it without compromising on weight or the stiffness needed for ruthless power transfer.

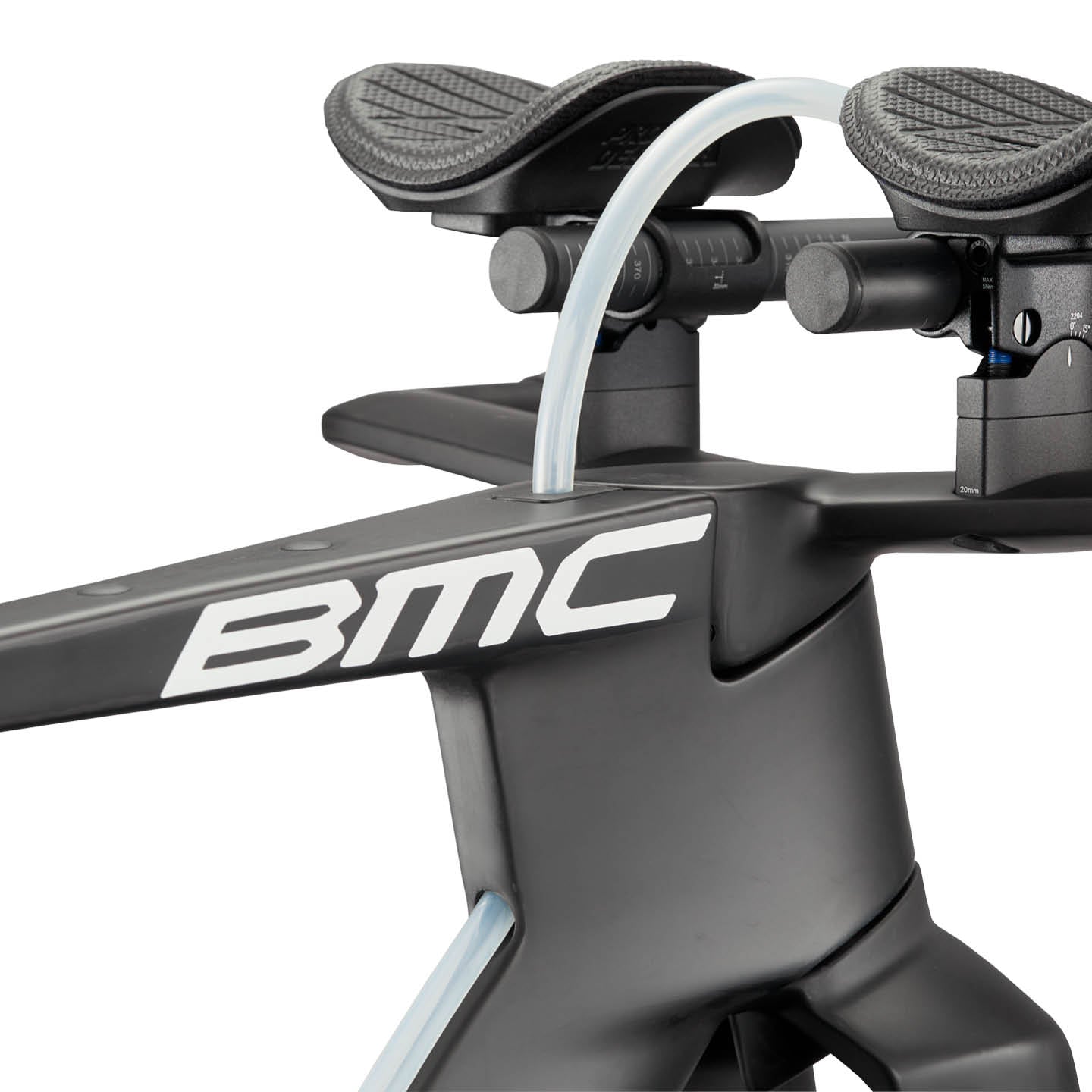

Stability Creates Speed

We achieved real‑world stability with refined tube profiles and steering geometry built for riding, not just measuring. Crosswinds, tight turns and technical descents demand confidence. A tri bike, with the stability and handling of a road bike.

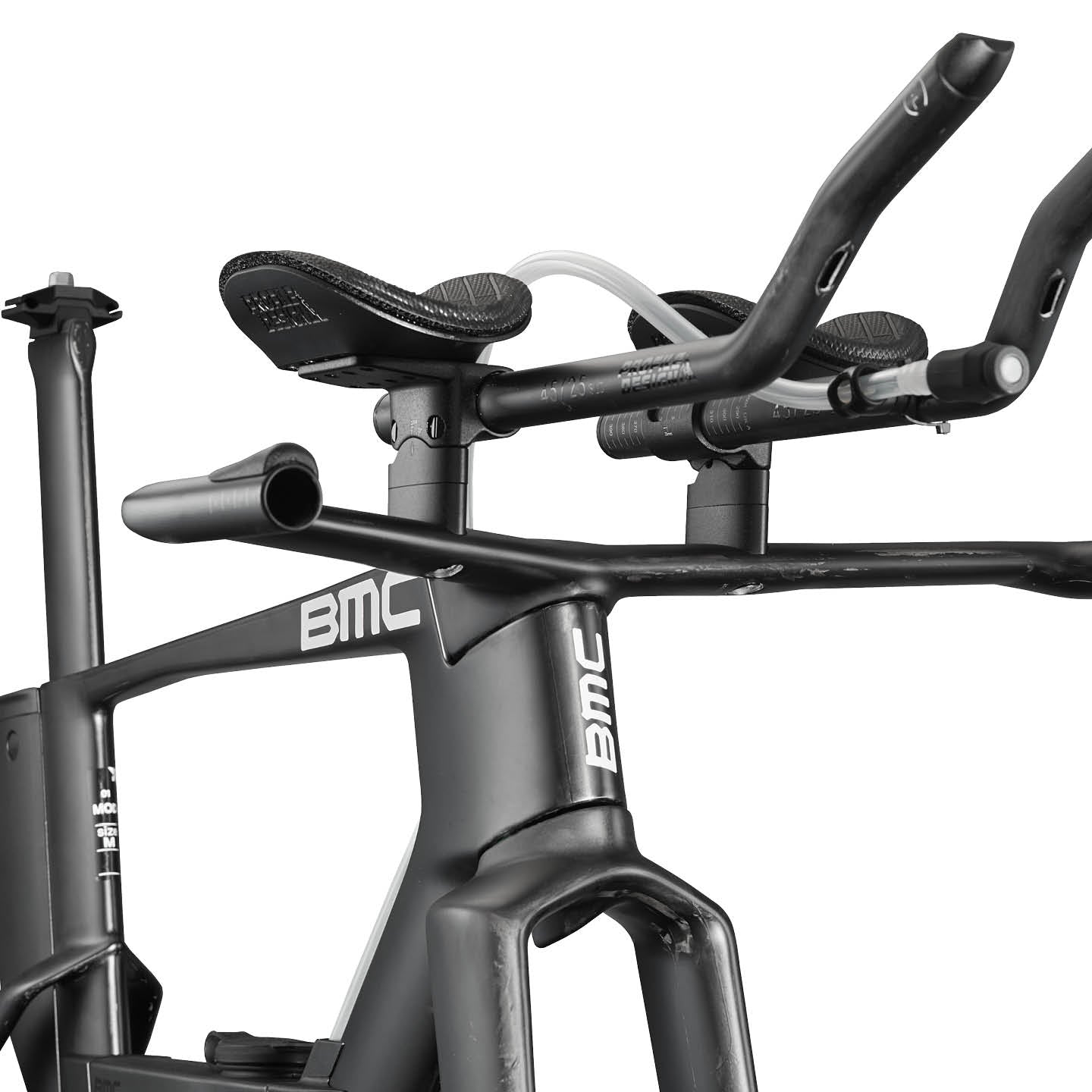

Adaptability

A redesigned cockpit that refines your position with a wide choice of bars and generous adjustment. It adapts to you so you can hold your optimal position, while making travel, maintenance and everyday bike life simpler.

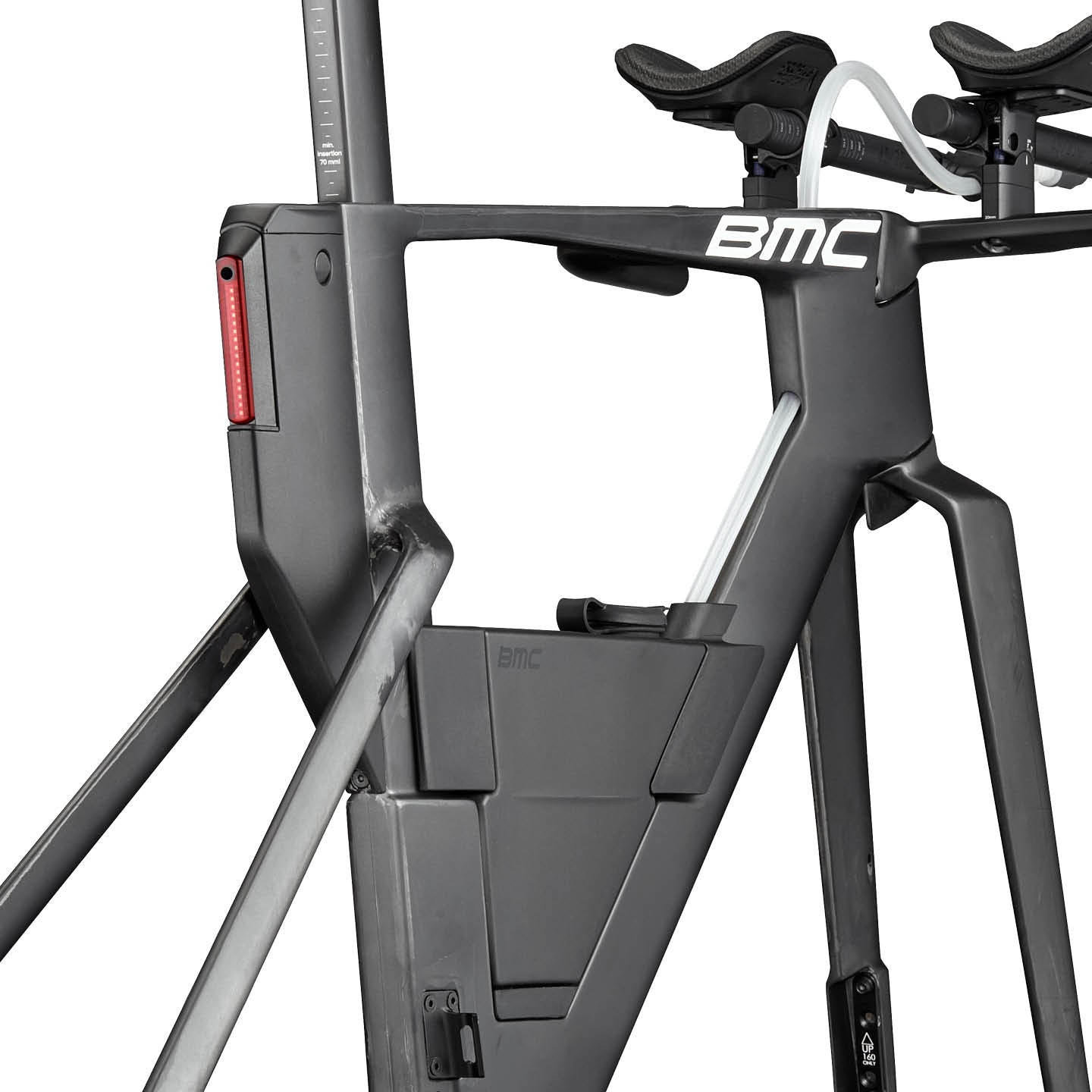

Integrated, everything

Advanced storage integration ensures riders have easy access to hydration, fuel, and essentials during extended rides. All engineered in an aero-boosting package.

Technical Overview

Frameset

Cockpit

Handlebar:
BMC Speedmachine Flat Cockpit | Profile Design Aeria Ultimate with Ergo+ Armrests and 45/25 SLC Aerobar Extensions

Seat

Seatpost:
Speedmachine 01 | 01 Premium Carbon Aero Seatpost | 0mm, 12.5mm, 25mm Offsets

Drivetrain

Front Derailleur:
Derailleur hanger for Front Derailleur Standard (2x drivetrain - 56t max - 44.5mm chainline), Front Derailleur Standard (2x drivetrain - 60t max - 44.5mm chainline), and Cover (1x drivetrain)

Rear Derailleur:
Full Mount - UDH

Bottom Bracket:
T47 68mm Road

Brakes

Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear

Accessories

Additional Information

Tire Clearance:
30mm measured tire

Weight without Pedals:
4035g | Size M as pictured with all accessories

ASTM Classification:
Level 1

System Weight Limit:
110kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	L
Rider Height	<174	172-185	>180
Bar Width	400	400	400
BB Drop	62	72	72
Fork Length	391	391	391
Front Center	578	606	646
Pad Reach Flat Cockpit	348-466	368-486	395-548
Pad Stack Flat Cockpit	558-651	588-681	628-721
Rear Center	405	405	405
Saddle Height Range	610-740	705-835	760-881
Seat Angle	80	80	82.4
Seat Tube	460	525	551
Seatpost Length	300	330	360
Seatpost Offset	0, 12.5, 25	0, 12.5, 25	0, 12.5, 25
Standover Height	766	806	837
Wheelbase	974	1000	1040
